Wiring the basement, one of the funnest projects that finishing a basement requires. Make no mistake, this is no small project and it will test your basement finishing perseverance. But if you commit to wiring your basement yourself, you will be rewarded with a completed project that required both creativity and ingenuity.

I like to consider myself a YouTube-licensed electrician, and I was able to wire my entire basement outfitted with 7.2 surround sound speakers including a second zone in the workout room, CAT5e in every room, coax in every room, in-wall PVC pipe, multiple standard plugs and switches, one 4-way switch, one switched outlet, one fan, exhaust fan for the bathroom, smoke detectors, recessed lighting, lighting with dimmers, and wall sconces.

The only electrical project I did not tackle myself was tapping into the main line and installing a new sub-panel for all the basement electrical runs. I would recommend a dedicated sub-panel in your basement for a few reasons, but we’ll get into that in a bit. First let’s chat about some wiring basics and a few initial decisions you’ll want to make.

Electrical Basement Wiring Basics

The Basement Subpanel

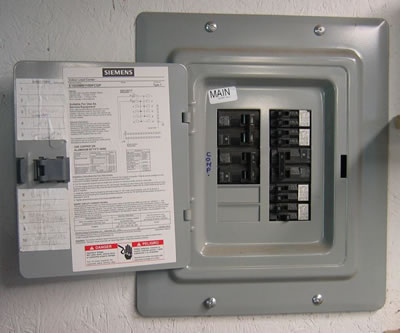

basement subpanelFirst things first, you’re going to need power in the basement. Your first decision will be deciding where to draw that power from. Chances are you’ve got an existing subpanel somewhere in the house. You can either make your “runs” to that existing subpanel or you can install a new subpanel. Here are the questions I would ask myself about your existing subpanel:

  1. Are there enough empty slots for all the “runs” I need in my basement?
  2. Can I run wires from the existing subpanel to the basement, or will it be too difficult?

If the answer to both of those questions is yes, then you should be safe using your existing subpanel. I decided to go another route and have a new subpanel installed in my basement. I went this route for a few reasons:

Benefits of a Basement Subpanel
  • Easier to make my electrical “runs” to the basement subpanel instead of going outside
  • Ability to turn power to the entire basement on and off with the flip of a breaker at my main subpanel
  • My existing subpanel was situated on the outside of the house, and having to run wires outside the house through conduit wasn’t an ideal situation for me
  • In the end I didn’t have enough empty slots in my existing subpanel
  • I found a super-cheap and professional electrician to help me install a subpanel in my basement

At the end of the day I really wasn’t comfortable tapping into the main electrical line to install a new subpanel, so I hired out the work which only took a few hours. I was left with a brand new subpanel in the basement which I felt was ultimately cleaner and easier for me to tackle than the existing subpanel.

Rough-In Electrical Basement Wiring 101

There’s a lot to grasp when it comes to wiring, and I was ultimately overwhelmed when I started thinking about the project. I had no experience whatsoever with wiring when I first started. YouTube became my best friend and I’ll share some of my favorite videos with you on this page. The truth is that once you understand the basics of wiring it becomes more of a creative project than anything else. You’re left making decisions about where you might want wall sconces, do you want a fan in this room, are you going with dimmers? It really becomes a simple task and you’re left making some funner decisions.

Electrical Runs

I’ve mentioned electrical “runs” a few times in this post. The definition of an electrical home run is:
“…a wiring run that is not branched from another circuit or wiring run, but that connects directly to the building’s main electrical panel.”

In essence, this is the starting point for understanding what it will take to rough in your basement electrical. When you can understand how a run works everything starts to make a little more sense. For example, I have a total of 6 electrical runs in my basement. Those 6 runs are as follows:

  • Workout Room Plugs and Lights
  • Hallway Plugs and Lights and Storage Room Plug and Light
  • Bathroom Plugs, Lights, and Exhaust Fan
  • Bedroom Plugs and Lights
  • Media Bay (AV Equipment)
  • Theater Room Plugs and Lights

You may be required by code to put your bathroom on a dedicated run, as the bathroom will require a GFCI plug, or a ground fault indicator. That’s the plug with a green LED light on it. It’s also best practice to use #12 gauge (20 Amp) wires for plugs, so let’s talk about wiring gauges and what they mean.

Wiring Gauges

basement electrical rough inIn my basement I used two different wiring gauges, #12 and #14, which deliver 20 and 15 amps respectively. The smaller the gauge the larger the wire, hence the more amps it can deliver to your electrical run. Inspectors like to see #12 wiring used for plugs because they can handle a larger load and are less likely to pop your breaker or cause issues.

Another important note on wiring gauges is that it’s against code to switch gauges in the middle of a run. For example let’s say I wire my bedroom plugs with #12 gauge wiring. I then make a run from one of my plugs up to the light switch. Because #14 gauge wire is thinner and easier to work with, why not just use #14 to go up to the light from the switch? This is considered a no-no and your inspector will not approve this.

In summary if you’re going to make any runs with #14 gauge wiring then stick to your lights and you’ll be good to go.

Rough-In Wiring Basics

Here’s one of my favorite videos discussing the rough-in process. It doesn’t get crazy technical and it doesn’t get to the stage of installing switches and plugs, but here’s what it does cover:

  • Basics of electrical and wiring rough-in code
  • Proper measurements and placement of boxes and switches
  • Stripping wires and running them to boxes

Wiring Switches, Plugs, and Lights

Switches and plugs will make up part of your basement electrical runs, while lights will make up the other part. My AHA! moment came when I realized I couldn’t just begin my electrical run and start the wires in the closest outlet box or light. You have to think about what will need constant power (plugs) and what will need to be controlled through a switch (lights, fans, switched outlets). If you have any electrical runs in your basement that will include plugs, switches, and lights, you’ll have to start the run with your plugs and then move to the switch and lights.

Here’s a nice descriptive video which shows an electrician wiring a single pole switch to a light. This is a great start to understanding how to wire a switch and how it will get it’s power, either from an existing outlet or directly from your subpanel.

Godspeed,
Tony



Share This

Share

16 Comments

  1. Chris says:

    What happened to the awesome electrical rough in video detailing the distances, heights……etc of outlets, switches….etc.

    Can you recommend any similar vidoes……just when I reached the electrical stage the video no longer works

    1. Tony says:

      Hey Chris,

      Thanks for the heads up, looks like the video was removed for some reason. I went ahead and replaced it with another one that covers much of the same information.

      Let me know if you have any specific questions about wiring that I can help answer. Good luck!
      Tony

  2. Dave says:

    What’s the catch with the vapor barrier electrical boxes?!
    Did you do this?

    I already have a blanket of insulation for my exterior walls, I can’t find anywhere for New York State code that I would need to have a vapor barrier box…

    Any help?

    Thanks!

    1. Tony says:

      Hey Dave,

      I did not use any vapor barrier electrical boxes. It looks like these create an airtight seal around all of your electrical boxes. I can’t give much advice on these as I wasn’t required to use them, but it looks like it may be more efficient from an energy perspective. I wouldn’t imagine these are required by code, but don’t take my word for it, I would check your local code to be sure.

      Thanks Dave and best of luck!
      Tony

  3. Tom says:

    You’re incorrect in stating that you have to wire your “run” with plugs first. All you have to do is pigtail the common or the hot (and the ground) past the fixture you’re claiming you have to put down stream that you want upstream, and keep on going. If you’re going to give electrical advice, you may want to make sure you know what you’re saying first.

    1. Tony says:

      Hey Tom,

      You’re probably correct. Remember I’m a YouTube-licensed electrician. That doesn’t mean I’m an expert and know all the tricks of the trade. Far from it!

      Thanks for the input and hopefully those who read your comment can use your advice.
      Tony

  4. Dave says:

    Tony – would you mind sending me the name / contact info for the electrician you hired for the sub-panel? Thanks!

    Really appreciate your site. It’s incredibly helpful and helps take the fear-factor out of starting on the basement.

    Dave Walker

    1. Tony says:

      Hey Dave!

      I’ve got a text out to the guy I used. If he gets back with me I’ll shoot you an email with his information.

      Thanks!
      Tony

  5. Kasey says:

    Does the new 2014 nec code say anything about having an extra 12″ of extra wire between two receptacles or cam they just be installed with out any slack before enter the boxes. I thought o read somewhere on another website saying that you have to have 12″ of slack in the wire before enter a receptacle box. Thanks

    1. Tony says:

      Hey Kasey,

      Thanks for the question. I’m not an expert on the latest revisions in electrical code, but I don’t believe this is a requirement. It certainly wasn’t required when I finished my basement, and I had the opinion of a certified electrician as well as the inspector.

      Best of luck on your basement finish and let me know if you have any other questions. Thanks!
      Tony

  6. Ryan says:

    I’m finishing my basement and have existing wire bolted to the foundation in conduit. This will be inside of my finished drywall. Do I need to remove that wire from the conduit before installing drywall, or is “code” to be in the conduit behind the drywall?

    1. Tony says:

      Hey Ryan,

      Thanks for the question. As far as I know, wiring in conduit INSIDE the structure is only required by code in some commercial and industrial projects. It would be considered “above and beyond” in a residential project. That doesn’t mean it would be against code, it just means you’ve gone above the call of duty 🙂

      It should be no problem at all. Let me know if you have any other questions and best of luck with your finishing project!
      Tony

      1. Andrew says:

        In certain areas it is code to use EMT (conduit) in residential buildings. I just purchased a new build and all electrical is in conduit

  7. Danni Black says:

    It seems like having a basement sub panel would be really beneficial. My husband and I have been wanting to finish our basement for a while now but we aren’t really sure what to do about the electrical work. We might call someone in to do the project just to be safe. Thanks for the great information!

  8. Jesse Mayben says:

    Can I use a GFI breaker instead of a GFI receptical for the basement bathroom. Does code require GFI anywhere else in a basement.

    1. Tony says:

      Hey Jesse!

      I remember I was required to have a GFI receptacle under my stairs in an unfinished storage space. Other than that I think the bathroom was the only other spot. I think the main question for me would be cost savings. If you just need one plug in your bathroom you’re saving money by just purchasing one receptacle instead of a more expensive breaker. If you’ve got multiple places that will need a GFI receptacle, than you may find cost savings by buying a breaker instead.
